Operating System

Kernal \(\approx\) OS

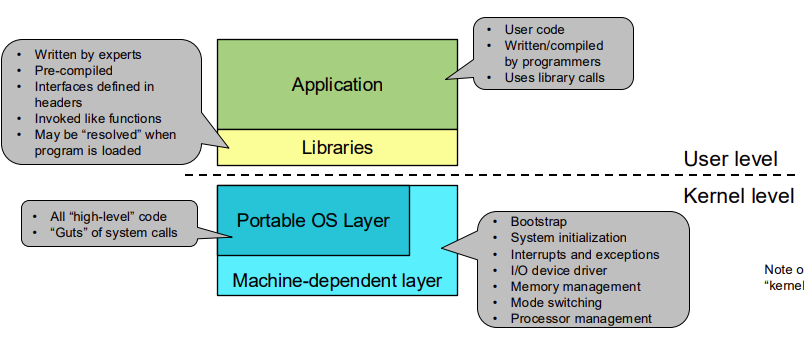

Software of a Unix System

alt text

Application

  • user code
  • use library calls

Libraries

  • pre-compiled
  • written by experts

Portable OS Layer

  • all high level codes
  • system calls

machine-dependent layer

  • bootstrap
  • IO device driver
  • interrupts and exceptions
  • mem mangement

Protection

CPU modes:

  • Kernal mode - can run all instructions
  • User mode - can only run non-priviledged instructions
  • Mode is indicated by a mode bit in a protected CPU control register

Priviledgd Instructions

a subset of instructions that can only run in kernal mode

  • the CPU checks mode bit when priviledged instructions execute
  • if the mode bit is set to user mode, the CPU will raise an exception

Priviledged Instructions Can DO:

  • Directly access IO devices (disk, network, etc.)
  • manipulate memory management (page tables, etc.)
  • manipuate CPU protected control registers (mode bit, etc.), preventing user code from changing the mode bit

HLT: halts the CPU

Memory Protection

prevents user code from accessing kernal memory, Seperation of user and kernal memory

should programs trust OS?

may/may not be trusted, but the OS should not trust the programs

OS Events

unnatural change in the flow of control

  • stops current execution
  • change mode, context or both

OS defines handlers for these events, event handlers are executed in kernal mode after system booted, all entry to kernal occurs as result of an event

Os

OS itself is a big event handler

OS only executes in response to an event

interrupts

cause by external eventm abd are generated by hardware

interrupts on modern CPUs are precise: CPU transfer control only on instruction boundaries

Handling interrupts

graph TD;
    A[Interrupt] --> B[Disable interrupts at lower priority]
    B --> C[Save state - PC, registers, mode, etc]
    C --> D[transfer control to interrupt service routine - in kernal]
    D --> E[when done. restore state, resume execution]
    E --> F[resume user level program at next instruction]
    F --> A

exceptions

caused by program execution instructions

Faults

Hardware detects and report exceptional conditions

eg: try execute priviledged instruction in user mode

on exception, hardware faults, it needs to:

  • Save state (PC, registers, mode, etc.)
  • restart the faulting process
  • CPU finds the exception handler in the kernal matching the exception type
  • CPU switch to kernal mode and jumps to the exception handler
  • after fault is handled, CPU returns to user mode and resumes execution (reverse of above)

some faults are handled by fixing the exceptional condition, eg: page fault -> bring page into memory

some faults are handled by notifying the process, where application register a fault handler with OS, and OS returns to the user mode fault handler. eg: SIGFPE, SIGTERM

some faults are handled by terminating the process, when there is no registered handler. halt state, write process state to file, and destroy process

if faults occur in kernal, eg dereference null pointer, the faults are considered fatal and the OS will crash. Unix panic, state dumped to core file

System calls

request kernal service by calling OS API

CPU provides a system call instruction to:

  • cause exception
  • pass parameter determining system routine to call
  • save caller state to be restored
  • return from system call restore the state
  • need hardware to implement: restore saed state, reset mode, resume execution
System Call Description
INT executes a system call
SYSCALL executes a system call (64 bits)

events can be unxpected or deliberate

example of system calls

graph TD;
    A[Application: user action] --> B[system call: Library API call]
    B --> C[user/kernl level switch]
    C --> D[OS: trap to kernal]
    D --> E[OS: kernal trap handler]
    E --> F[OS: restores state, resume to user application]
    F --> A
process and OS communication
  • the OS returns names of the data structure in the kernal to the user process. why?
  • The OS and user processs are in the different address spaces, therefore, it returns integer object handles or descriptors like unix file descriptors.

Events Comparison

Characterstics interrupts faults System calls
Handled by trapping to? OS OS OS
handler runs in ? kernal kernal kernal
states are saved by? hardware hardware hardware
cause by? external events program execution program execution
